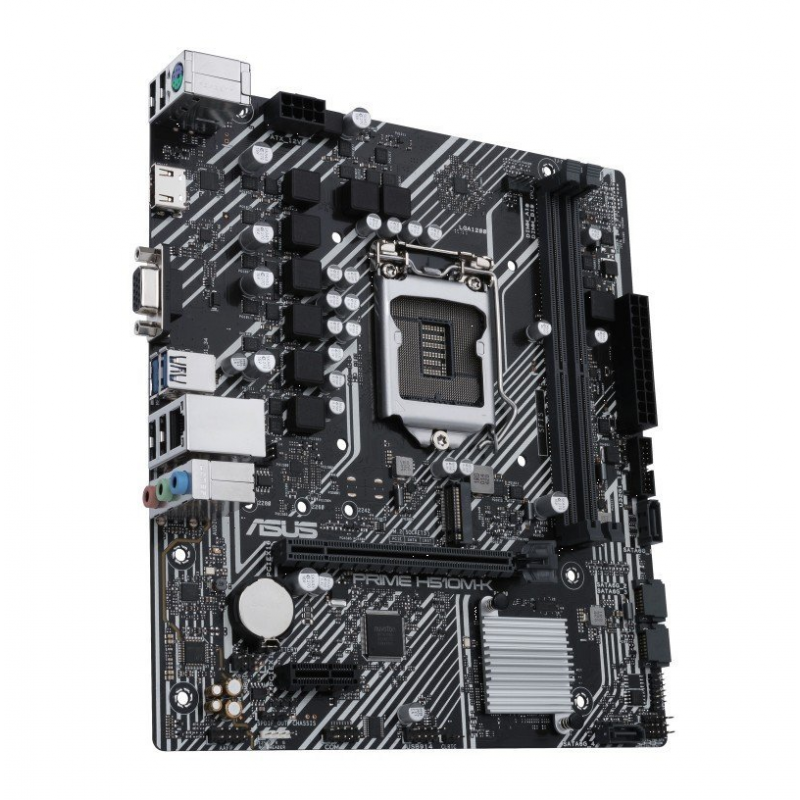

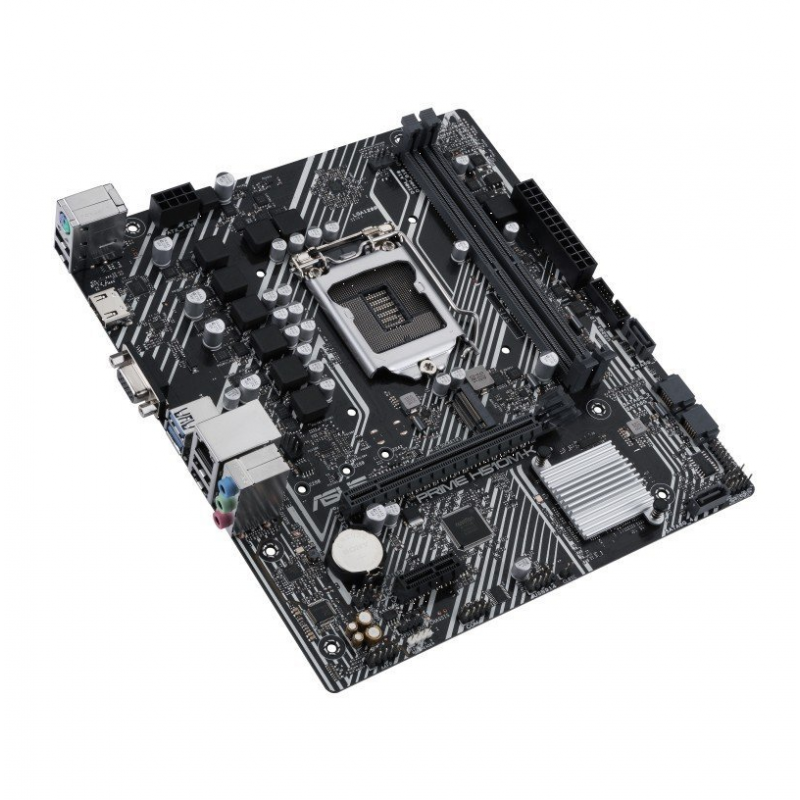

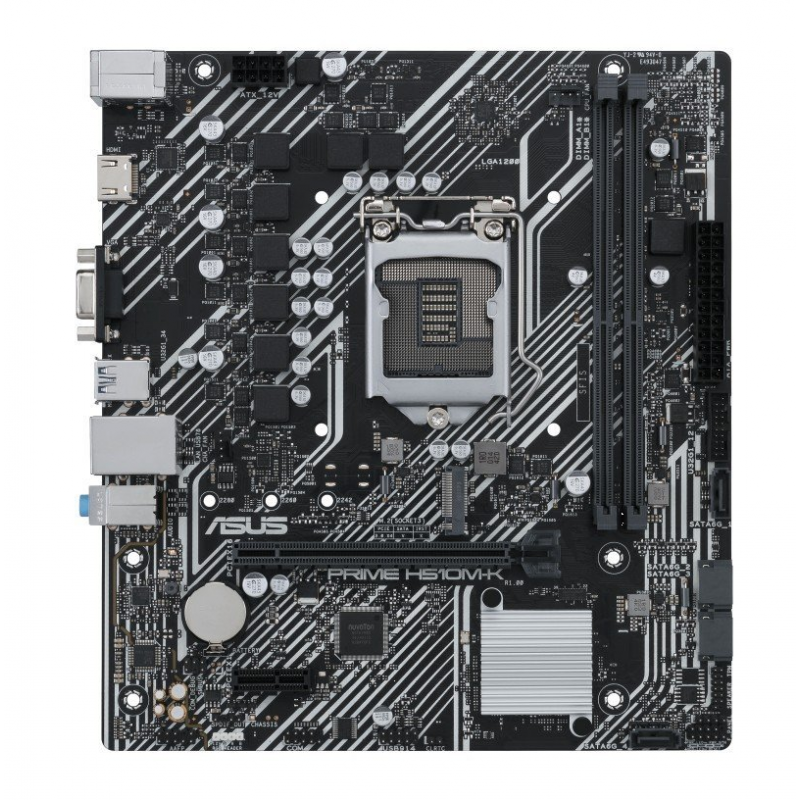

Asus prime h510m-k

Las placas base de la serie ASUS Prime están diseñadas por expertos para liberar todo el potencial de los procesadores Intel® de 11.ª y 10.ª generación. Con un diseño de energía robusto, soluciones de enfriamiento integrales y opciones de ajuste inteligentes, PRIME H510M-K ofrece a los usuarios diarios y a los constructores de PC DIY una gama de opciones de ajuste de rendimiento a través de funciones de software y firmware intuitivas.

Características:

• Zócalo Intel® LGA 1200: listo para procesadores Intel® de 11.a y 10.a generación
• Conectividad ultrarrápida: PCIe 4.0, ranura M.2 de 32 Gbps, Intel® 1 Gb Ethernet y USB 3.2 Gen 1
• Refrigeración completa: disipador de calor PCH y Fan Xpert
• 5X Protection III: múltiples protecciones de hardware para una protección completa

Especificaciones:

• CPU
  • Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • * Refer to www.asus.com for CPU support list.
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
  • Intel® H510 Chipset
• Memory
  • Memory Channels:2DDR4 (Dual Channel)
  • Max Memory Size:64GB
  • DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
  • Dual Channel Memory Architecture
  • Supports Intel® Extreme Memory Profile (XMP)
  • * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
  • * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
  • * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
• Graphics
  • 1 x D-Sub
  • 1 x HDMI™ 2.0**
  • * Graphics specifications may vary between CPU types.
  • ** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
• Expansion Slots
  • Intel® 11th & 10th Gen Processors
  • 1 x PCIe 4.0/3.0 x16 slot
  • - Intel® 11th Gen processors support PCIe 4.0 x16
  • - Intel® 10th Gen processors support PCIe 3.0 x16
  • Intel® H510 Chipset
  • 1 x PCIe 3.0 x1 slot
• Storage
  • Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  • Intel® H510 Chipset
  • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • * The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
• Ethernet
  • 1 x Intel® I219-V 1Gb Ethernet
  • ASUS LANGuard
• USB
  • Rear USB:Total 6 ports
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB:Total 4 ports
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Audio
  • ALC887/897
  • Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - Supports up to 24-Bit/192 kHz playback"
  • Audio Features
  • - Audio Shielding
  • - Dedicated audio PCB layers
  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

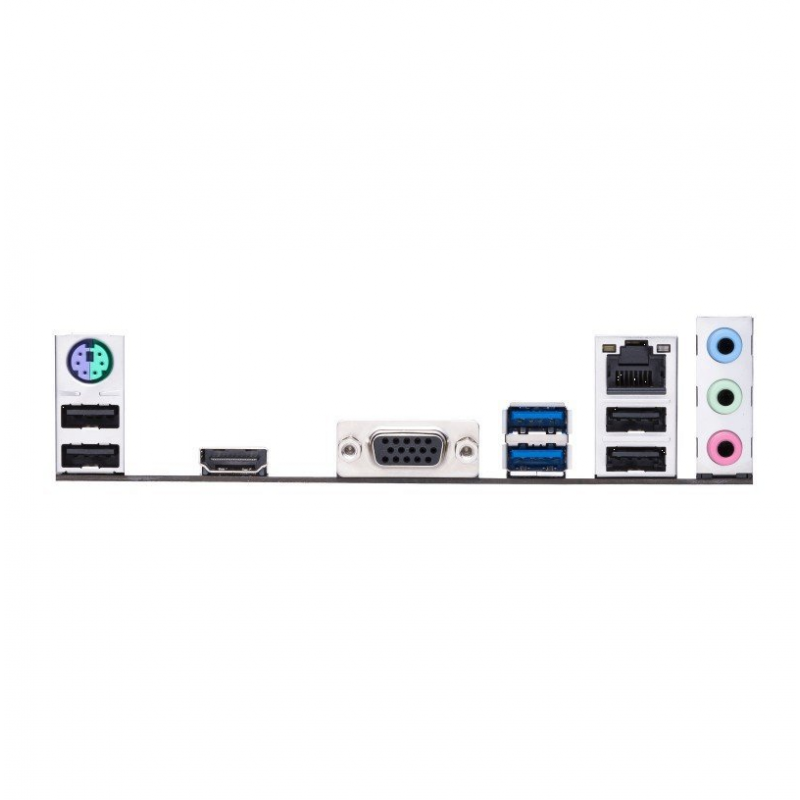

• Back Panel I/O Ports
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x D-Sub port
  • 1 x HDMI™ port
  • 1 x Intel® I219-V 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Intrernal I/O Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin Chassis Fan header
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • Storage related
  • 1 x M.2 slot (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
  • Miscellaneous
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
• Special Features
  • ASUS 5X PROTECTION III
  • - DIGI+ VRM
  • - LANGuard
  • - Overvoltage Protection
  • - SafeSlot Core
  • - Stainless-Steel Back I/O
  • ASUS Q-Design
  • - Q-DIMM
  • - Q-Slot
  • ASUS Thermal Solution
  • - Aluminum heatsink design
  • ASUS Lighting Control
  • - RGB header
• Software Features
  • ASUS Exclusive Software
  • Armoury Crate
  • AI Suite 3
  • - Performance And Power Saving Utility
  •   TurboV EVO
  •   EPU
  •   DIGI+ VRM
  •   Fan Xpert
  • - EZ update
  • ASUS CPU-Z
  • AI Charger
  • DAEMON Tools
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • - ASUS CrashFree BIOS 3
  • - ASUS EZ Flash 3
  • - ASUS UEFI BIOS EZ Mode
• BIOS
  • 128 Mb Flash ROM, UEFI AMI BIOS
• Manageability
  • WOL by PME, PXE
• Accessories
  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x I/O Shield
  • 1 x M.2 ANCHOR
  • Installation Media
  • 1 x Support DVD
  • Documentation
  • 1 x User manual
• Operating System
  • Windows 10 64bit
• Form Factor
  • microATX
  • 22.6cm x 20.3cm
